RINGO TILT 1.1
Luminaria empotrable basculante fabricada en policarbonato, diseñada para poder combinar diferentes ángulos de aperturas, por otro lado, cuenta con la opción de dos luces en dos medidas.
Portalámparas
GU10
,
LED
Potencia
≈ 6W / >600 lm
,
≈ 10W / >1000 lm
,
Max. 10W
Regulación
PUSH
,
Dali
,
Driver no incluido
,
No regulable
Temperatura de color
2700K
,
3000K
,
4000K
,
ºK no disponible
Ángulo de apertura
40º
,
16º
,
Å no disponible (lámpara no incluida)
,
24º
Complementos
Difusor transparente
,
Difusor Ice
,
Sin difusor
Acabados
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| RINGO TILT 1.1 | 6W | 150 mA | 2.7K | 570 lm | 92 |
| 6W | 150 mA | 3K | 595 lm | 92 | |
| 6W | 150 mA | 4000K | 635 lm | 92 | |
| RINGO TILT 1.1 | 10W | 300 mA | 2.7K | 1.005 lm | 92 |
| 10W | 300 mA | 3K | 1.070 lm | 92 | |
| 10W | 300 mA | 4000K | 1.135 lm | 92 | |
| RINGO TILT 1.1 | Max. 10W | No Lamp | X | No Lamp | No Lamp |
Para ayudar a personalizar este producto, hemos creado un simple configurador paso a paso. Haga clic en el botón para comenzar.
-
Technical Datasheet
-
LED Efficiency Label
-
Installation Instructions
-
General Guarantee Conditions
-
2D - dwg
-
2D - dxf
-
3D - step
-
Extended Guarantee Conditions
-
CE Declaration for GU 10
-
CE Declaration for LED
-
Test report certificate
-
LED 6W technical datasheet
-
LED 10W technical datasheet
-
Driver 6W technical datasheet
-
Driver 10W technical datasheet
LDT File
![[CR91A20N25BBS] CARDAN 90.1 LED No regulable 50º Difusor transparente 2700K Negro mate ≈ 17W / >2500 lm](/web/image/product.product/443987/image_512/%5BCR91A20N25BBS%5D%20CARDAN%2090.1%20LED%20No%20regulable%2050%C2%BA%20Difusor%20transparente%202700K%20Negro%20mate%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=9a7e131)
![[RB11E10XXXXBS] RINGO BOX 1.1 GU10 Negro mate Max. 10W](/web/image/product.product/360906/image_512/%5BRB11E10XXXXBS%5D%20RINGO%20BOX%201.1%20GU10%20Negro%20mate%20Max.%2010W?unique=a7ec2db)
![[RT21A20F25BBG] RINGO TILT 2.1 LED PUSH 50º Difusor transparente 2700K Negro mate + Dorado ≈ 17W / >2500 lm](/web/image/product.product/390105/image_512/%5BRT21A20F25BBG%5D%20RINGO%20TILT%202.1%20LED%20PUSH%2050%C2%BA%20Difusor%20transparente%202700K%20Negro%20mate%20%2B%20Dorado%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=9a7e131)

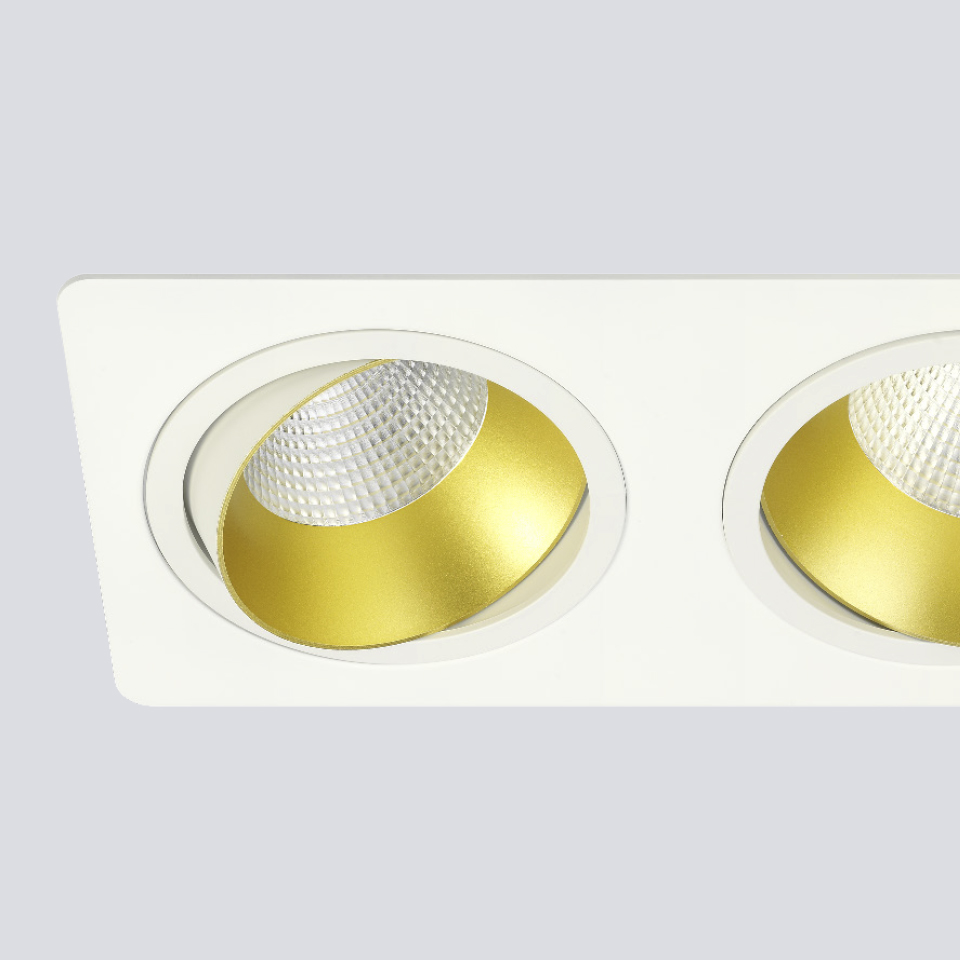

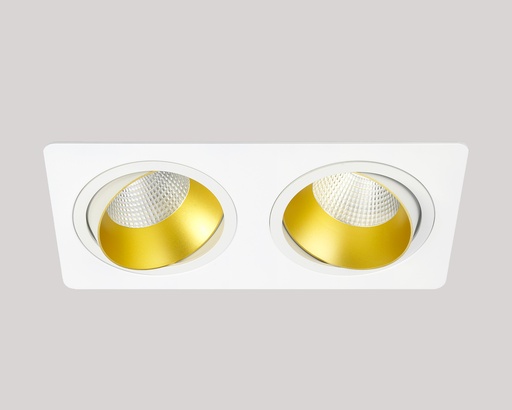

![[RT22A20F25BBG] RINGO TILT 2.2 LED PUSH 50º Difusor transparente 2700K Negro mate + Dorado ≈ 17W / >2500 lm](/web/image/product.product/390654/image_512/%5BRT22A20F25BBG%5D%20RINGO%20TILT%202.2%20LED%20PUSH%2050%C2%BA%20Difusor%20transparente%202700K%20Negro%20mate%20%2B%20Dorado%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=8244975)
