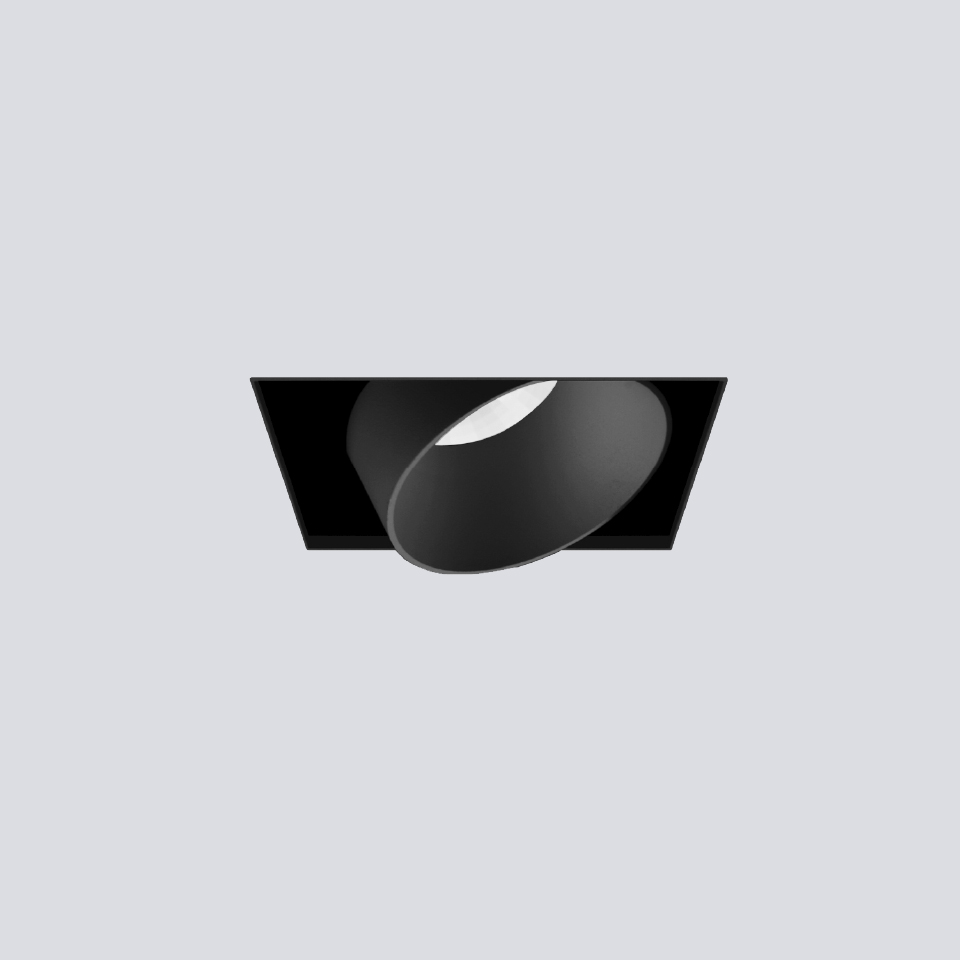

RINGO BOX 1.1 F
Ringo Box, cuenta con dos medidas que se ajustan a diferentes flujos lumínicos, con el RingoBox buscamos ampliar la familia Ringo, así con una misma familia tendrás diferentes soluciones sin cambiar la línea estética.
Portalámparas
GU10
,
LED
Potencia
≈ 6W / >600 lm
,
≈ 10W / >1000 lm
,
Max. 10W
Regulación
PUSH
,
Dali
,
Driver no incluido
,
No regulable
Temperatura de color
2700K
,
3000K
,
4000K
,
ºK no disponible
Ángulo de apertura
40º
,
16º
,
Å no disponible (lámpara no incluida)
,
24º
Complementos
Difusor transparente
,
Difusor Ice
,
Sin difusor
Acabados
| W | mA | Temp. | Lum. | CRI | |
|---|---|---|---|---|---|
| RINGO BOX 1.1 F | 6W | 150 mA | 2.7K | 570 lm | 92 |
| 6W | 150 mA | 3K | 595 lm | 92 | |
| 6W | 150 mA | 4000K | 635 lm | 92 | |
| RINGO BOX 1.1 F | 10W | 300 mA | 2.7K | 1.005 lm | 92 |
| 10W | 300 mA | 3K | 1.070 lm | 92 | |
| 10W | 300 mA | 4000K | 1.135 lm | 92 | |
| RINGO BOX 1.1 F | Max. 10W | No Lamp | X | No Lamp | No Lamp |
Para ayudar a personalizar este producto, hemos creado un simple configurador paso a paso. Haga clic en el botón para comenzar.
-
Technical Datasheet
-
Technical Catalogue
-
General Guarantee Conditions
-
2D - dwg
-
2D - dxf
-
3D - step
-
Extended Guarantee Conditions
-
Installation Instructions
-
CE Declaration for GU 10
-
CE Declaration for LED
-
Test report
-
LED 6W technical datasheet
-
LED 10W technical datasheet
-
Driver 6W technical datasheet
-
Driver 10W technical datasheet
-
Efficiency Label
-
LED Efficiency Label
-
Test report certificate
LDT File

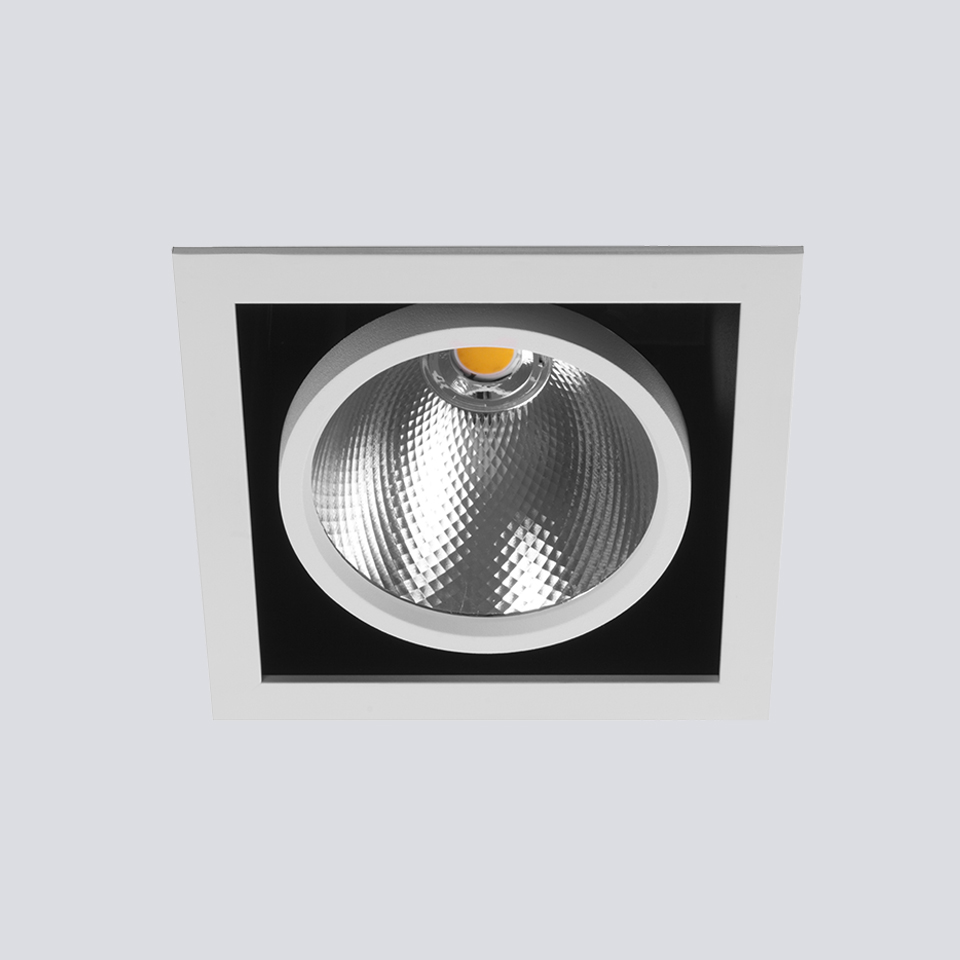

![[CR91A20N25BBS] CARDAN 90.1 LED No regulable 50º Difusor transparente 2700K Negro mate ≈ 17W / >2500 lm](/web/image/product.product/443987/image_512/%5BCR91A20N25BBS%5D%20CARDAN%2090.1%20LED%20No%20regulable%2050%C2%BA%20Difusor%20transparente%202700K%20Negro%20mate%20%E2%89%88%2017W%20-%20%3E2500%20lm?unique=9a7e131)
